ABB WaterMaster Mains Powered Meters

The latest electromagnetic flowmeter

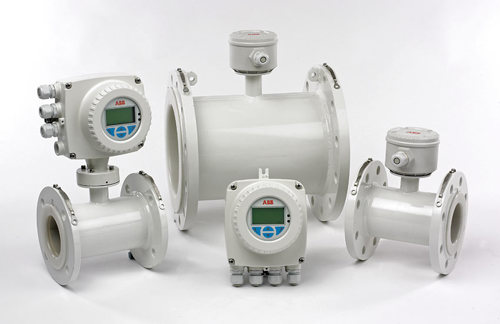

WaterMaster is the latest electromagnetic flowmeter in the ABB range and is designed specifically for use on potable and waste water applications. This meter is available in sizes ranging from 15mm to 2200mm and offers high levels of accuracy, reliability and low cost of ownership.

Key features

• Submersible sensor (IP68) for use in flooded chambers
• Buriable sensor eliminates the need to build a chamber
• Unique sensor design offers an octagonal bore reducing sensitivity to flow profile disturbances (40 to 300mm)
• High accuracy
• Standard calibration is ±0.4% OIML R49 Class 2 High accuracy calibration option is ±0.2% OIML R49 Class 1
• Wide operating flow range, can measure flows down to 40mm/sec. velocity
• Continuous self checking of the sensor and transmitter ensures the highest accuracy and long term performance
• VeriMaster in-situ verification of flow meter calibration with no interruption to any wiring, no cover removal (infrared service port through the glass) and no interruption to the measurement

Integral or remote mounted transmitters

WaterMaster can be supplied with an integral or remote mounted transmitter (up to 200 metres of cable as standard with the remote transmitter) and can measure bi-directional flow as standard.

‘Fit-and-Flow’ data storage

The transmitters ‘Fit-and-Flow’ data storage saves all flowmeter information and settings allowing for quick and easy transmitter replacement. It comes with a backlit graphical display with ‘Through-the-glass’ local operator interface for easy setup and shows the following parameters:

• Forward and reverse flow
• Forward, reverse & net flow totalisers
• Velocity
• Detailed diagnostics and alarms

The transmitter unit also offers the following outputs:

• 4-20 mA output
• Three digital outputs (2off configurable for pulse/frequency or alarm/logic function and 1off dedicated alarm/logic function)

Accuracy report

VeriMaster is a PC application, that when coupled to the WaterMaster through the infrared service port, generates a report on the accuracy of the complete flowmeter (sensor and transmitter). VeriMaster uses the advanced self-calibration and diagnostics capability of WaterMaster to determine the accuracy status to within ±1% of its original calibration and supports the printing of calibration verification records for regulatory compliance.
