Small Manual Download Dataloggers
The latest electromagnetic flowmeter

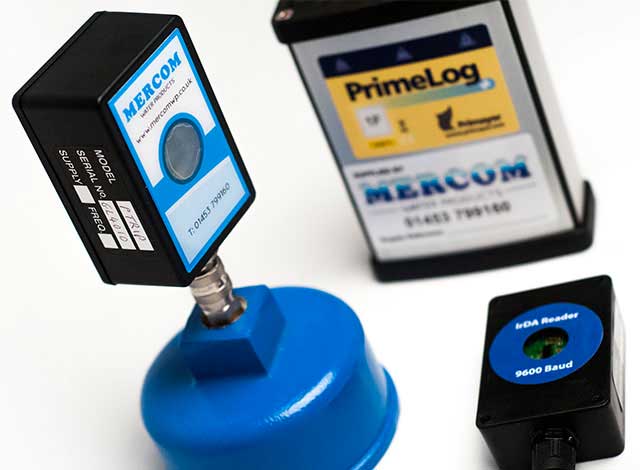

A new range of small / tiny manual download data loggers which offer a variety of measurement options, logging functions and enclosures to suit your requirements.
Request a quote

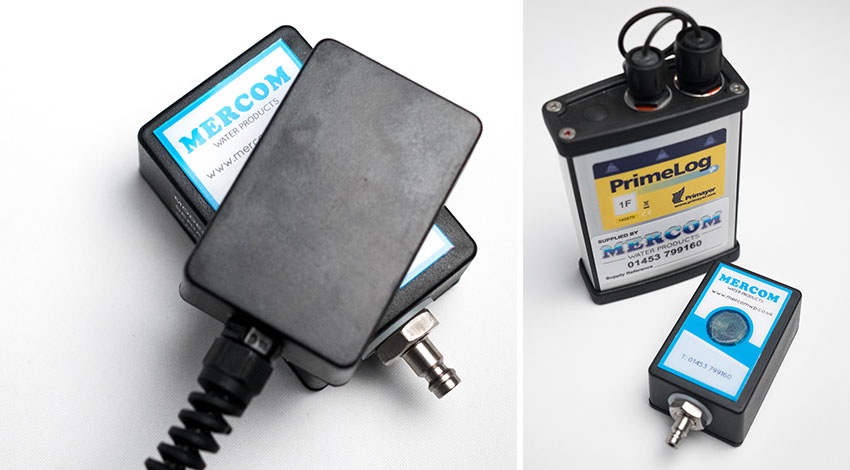

The enclosure options include a compact, lightweight plastic enclosure or a rugged stainless steel housing with the option of an LCD display, all of which can measure flow, pressure or analogue inputs. Local communication for all versions is via a fast non contact IrDA communication link.
- Tiny plastic enclosure available as single channel flow or pressure and dual channel flow & pressure datalogger, enclosure dimensions 87Lx57Wx38D(mm)
- The rugged stainless steel enclosure without an LCD display is available as a single channel (flow or pressure) and dual channel (flow & pressure) datalogger. The enclosure dimensions for the single channel logger are 105Lx65Wx55D (mm) and for the dual channel logger are 130Lx65Wx55D (mm)
- The rugged stainless steel enclosure with an LCD display is available as a single channel (flow or pressure), dual channel (flow & pressure), three channel (two pressure and one flow) and four channel (two pressure and two flow) datalogger. The enclosure dimensions are 145Lx90Wx55D (mm).
- All data loggers have a non-volatile memory which is organized into 8 independent data files each able to store up to 64,000 readings
- Each data file is an independent data logger with it’s own start/stop time, sample rate and logging rate. More than one data file can record different types of data from the same input channel, a typical example could be 15 minute logging interval, 1 minute logging interval, Pulse Interval Timing (PIT), maximum/minimum values etc
- Pressure transducers in the stainless steel enclosures are vented to atmosphere, logged data for all enclosures can be re-calibrated before, during and after the recording by re-calibrating the transducer to the data logger
- The flow channel on all dataloggers can log up to 80 pulse per second as standard (up to 400 pulses per second on request)
- Battery life typically 10 years
- All enclosures are IP68 (submersible)
- IrDA communication cable – baud rate of 115,200 baud allows for fast downloading of the logger
PC Software
GCRLog data management software for programming and downloading the data loggers.
- Large database storage and backup
- Data export to 3rd party software
- Comprehensive graphing and reporting
- Data handling such as overlay graph data, re-calibration of logged data, automatic and batch export for multiple data logger programming, i.e. survey logging
