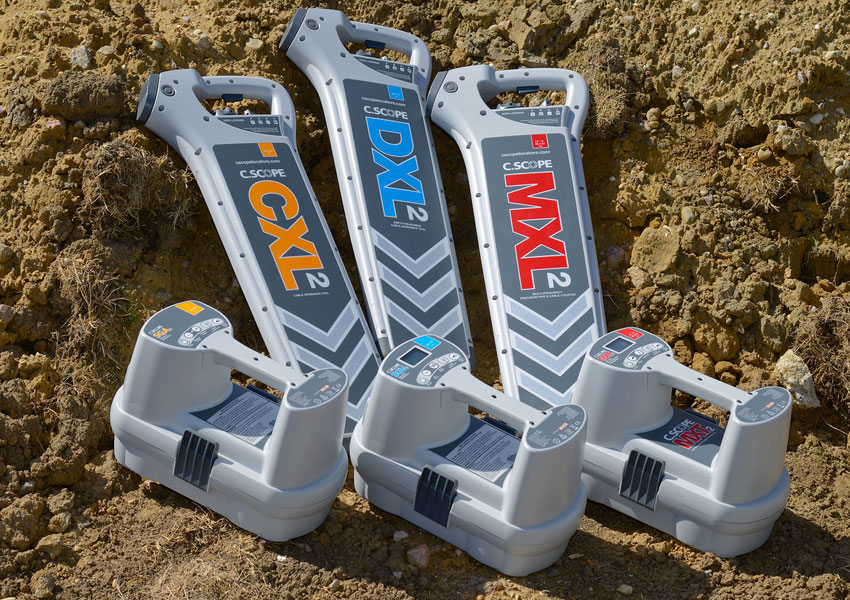

New Cable Avoidance Tools & Signal Generators are now available, we are offering the C-Scope CXL2 & DXL2 Cable Avoidance Tool (CAT) with either the SGA2 or SGV2 Signal Generator.

We also offer the MXL2 Locator and MXT2 signal Generator for tracing over longer distances. These are high performance Locators developed using the latest in advanced digital signal processing technology to locate the exact position of buried pipes and cables.

XL2, CXL2, DXL2 and MXL2

The new XL2 range have many new benefits to improve the day to day performance and keep the operator safer. The CAT’s improved signal detection sensitivity and better noise rejection means they are capable of detecting the smallest signals, even in areas of high service density and electrical noise.

The CXL2 and DXL2 offer the three standard detection modes, these being power, radio and generator as well as Allscan mode which detects ALL frequency of signal from the lowest of power signals right up to and including 33 kHz. The DXL2 also offers depth measurement when used with the SGA2 or SGV2 generator.

The MXL2 is a higher performance product with the same specification as the DXL2 plus additional detection frequencies (512/640 Hz and 8 kHz) to improve performance as well as tracing over longer distances and Signal Current Measurement which identifies the correct utility in close proximity to others.

CAT key features

No annual calibration

due to the long term stability of the product accuracy, there is no longer a requirement to send them back for annual calibration resulting in major savings in cost and downtime.

Automatic Daily Self Test (ADST)

is carried out each time the CAT is switched on so the operator knows it is working correctly and within specification. The test results are stored and can be downloaded at any time to produce a system validation certificate. The operator has the confidence in knowing the unit is working to its optimum performance, if however there is a problem, they will know straight away.

Dynamic Swing Sensor

will alert the operator via a single tone if the CAT is being swung excessively when in use to ensure best working practices are being adhered to and applied on site.

Simultaneous 33/131 kHz Frequency

in generator mode allows smaller diameter cables to be located more easily as well tracing non metallic pipes when using the Sonde or Plastic Pipe Tracer.

Data logging

is an additional option if required and will automatically record how and when the CAT is being used. A full audit trail is recorded of all locating activity, this include details when the CAT passed self tests (ADST), which operating modes have been used as well as when and for how long. More than 12 months data (in normal use) can be stored before it is overwritten, it can be downloaded to a PC via the USB data connection socket.

Bluetooth

is available as an additional option, this will allow the data logger to be downloaded to a smart phone or tablet (using a free to download App) which can then be e-mailed to a PC whilst on site for instantaneous analysis. GPS mapping is also an option to connect live to GPS survey/mapping equipment to allow accurate depth (if using the DXL2) of pipes and cables to be linked to x and y co-ordinates.

3 year warranty

standard on all of the XL2 product range

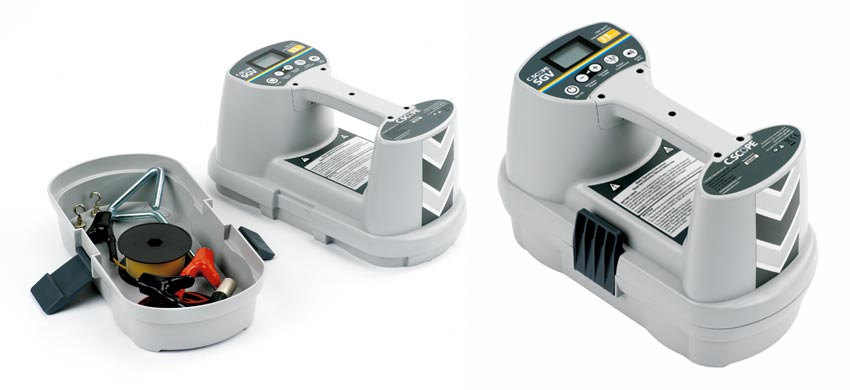

The SGA2 and SGV2 signal generators are used in conjunction with the CXL2 and DXL2 locators, the MXT2 signal generator is used with the MXL2 locator. They can energise a metal pipe or cable by direct connection (allows individual pipes or cables to be traced, identified and depths measured) or by the simpler induction method (allows previously unknown metal pipes and cables to be detected and traced).

Signal Generator key features

• No annual calibration - as per the key feature for the CAT above
• One watt maximum power output - as standard for both the SGA2 & SGV2 generators and MTX2 transmitter, this makes it possible to apply a detectable signal on to deeper and harder to detect pipes and cables and trace over longer distances. The SGA2 has two adjustable power setting options and the SGV2 and MXT2 have four
• Continuous and pulsed signal output - as standard on all units, the pulsed mode can be used in high interference situations and keep on tracing
• Backlit LCD display - is standard on both the SGV2 and MXT2 to indicate clear information of the functions selected, the power level being used and the battery condition
• 3 year warranty - 3 year warranty is standard for the SGA2, SGV2 and MXT2

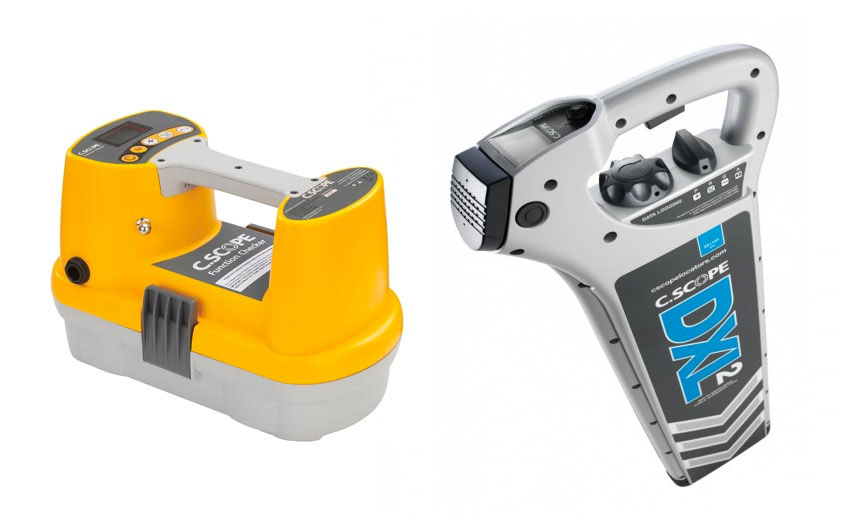

With the major benefit of not having the return the CXL2, DXL2 & MXL2 locators and the SGA2, SGV2 & MTX2 generator/transmitter for calibration, the Function Checker will allow you to check on site that the equipment is working to the manufacturers specification. This product is available to purchase or offered as a service by Mercom Water Products
