ABB WaterMaster

15mm to 1000mm sizes available from stock

Mains powered full bore flowmeters

Watermaster is designed specifically for use on potable and waste water applications and is available in sizes ranging from 10mm to 2400mm. This meter offers high levels of accuracy, reliability and low cost of ownership.

Request a quote

Integral or remote mounted transmitters

WaterMaster can be supplied with the transmitter mounted directly onto the sensor or remote from the sensor (with up to 200 metres of cable fitted) and can measure bi-directional flow as standard.

Next Day Delivery on ABB Flow Meters

We hold a large stock of ABB WaterMaster, ABB AquaMaster 4, ABB AquaProbe flow meters and flow meter spares ready for next day delivery. Get in touch on 01453 887449 or sales@mercomwp.co.uk

Request a quote

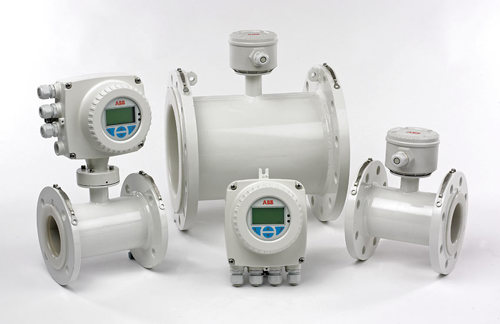

ABB Watermaster

Fit and Flow Data Storage

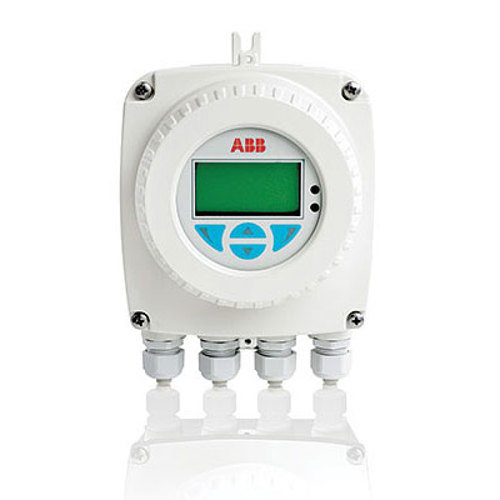

The transmitters ‘Fit-and-Flow’ data storage saves all flowmeter information and settings allowing for quick and easy transmitter replacement. It comes with a backlit graphical display with ‘Through-the-glass’ local operator interface for easy setup and shows the following parameters:

  • Forward and reverse flow

  • Forward, reverse & net flow totalisers

  • Velocity

  • Detailed diagnostics and alarms

The transmitter unit also offers the following outputs:

  • 4-20 mA output

  • Three digital outputs (2off configurable for pulse/frequency or alarm/logic function and 1off dedicated alarm/logic function)

  • PROFIBUS DP and MODBUS RTU outputs are also available

Accuracy report

VeriMaster is a PC application, that when coupled to the WaterMaster through the infrared service port, generates a report on the accuracy of the complete flowmeter (sensor and transmitter). VeriMaster uses the advanced self-calibration and diagnostics capability of WaterMaster to determine the accuracy status to within ±1% of its original calibration and supports the printing of calibration verification records for regulatory compliance.

If you're interested in the Watermaster meters please get in touch.

Request a quote

Related products

ABB WaterMaster

Watermaster is the latest mains powered electromagnetic flowmeter in the ABB range and is designed specifically for use on potable and waste water applications. This meter is available in sizes ranging from 15mm to 2200mm and offers high levels of accuracy, reliability and low cost of ownership.

ABB AquaMaster 4

Aquamaster 4 is available as a battery powered, renewable energy powered and mains powered electromagnetic flowmeter. This meter is available in sizes ranging from 40mm to 2400mm and offers high levels of accuracy, reliability and low cost of ownership. This flowmeter is suitable for use in areas where a power supply is not available.

ABB Aquaprobe

AquaProbe is an insertion electromagnetic flowmeter designed specifically for use on potable water applications. This meter can be supplied with an AC or DC mains power supply ((Aquaprobe 1), battery or renewable energy power supply with an option of mains power with battery back-up (AquaProbe II). All meters are available in four insertion lengths, 300mm, 500mm,700mm and 1000mm.

Flowmeter Accessories

Spares and accessory items are available from stock for all meters, these include replacement transmitter units, batteries (for Aquamaster 4 and all earlier versions), sensor cables, pulse cables, communication cables and many more.
