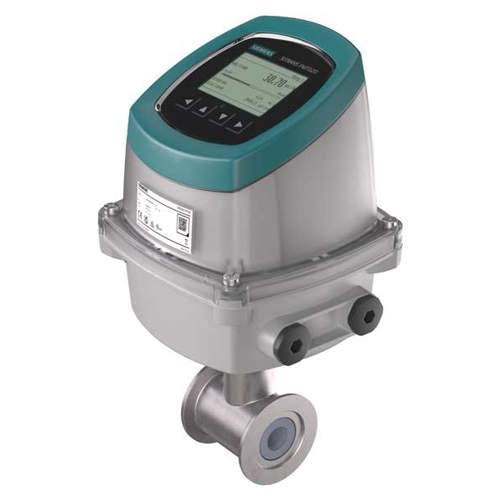

The FMS100 is a wafer style meter fitted with an integral or remote mounted FMT020 transmitter and is available in sizes ranging from 2mm up to 100mm. This meter is designed for chemical dosing applications in the water industry where there are pulsating flows, it offers high accuracy, easy operation and reduced maintenance.
Request a quoteRugged and robust corrosion resistant AISI 316 stainless steel sensor housing
Highly resitant ceramic lining and platinum sensing electordes for use with most extreme process media
High accuracy and repeatability, +/-0.21% of flow rate with the MAG6000 transmitter
Hoseproof IP67/NEMA 6 enclosure rating
Continuous self-checking with alarms ensures both sensor & transmitter accuracy during normal operation
Comprehensive self-diagnostics allows the meter to monitor both its own operability and the process
No moving parts for maintenance-free operation
User configurable operation menus which are password protected
We hold a large stock of Siemens FM520, FM120 & MAG 8000 flowmeters. Get in touch on 01453 887449 or sales@mercomwp.co.uk

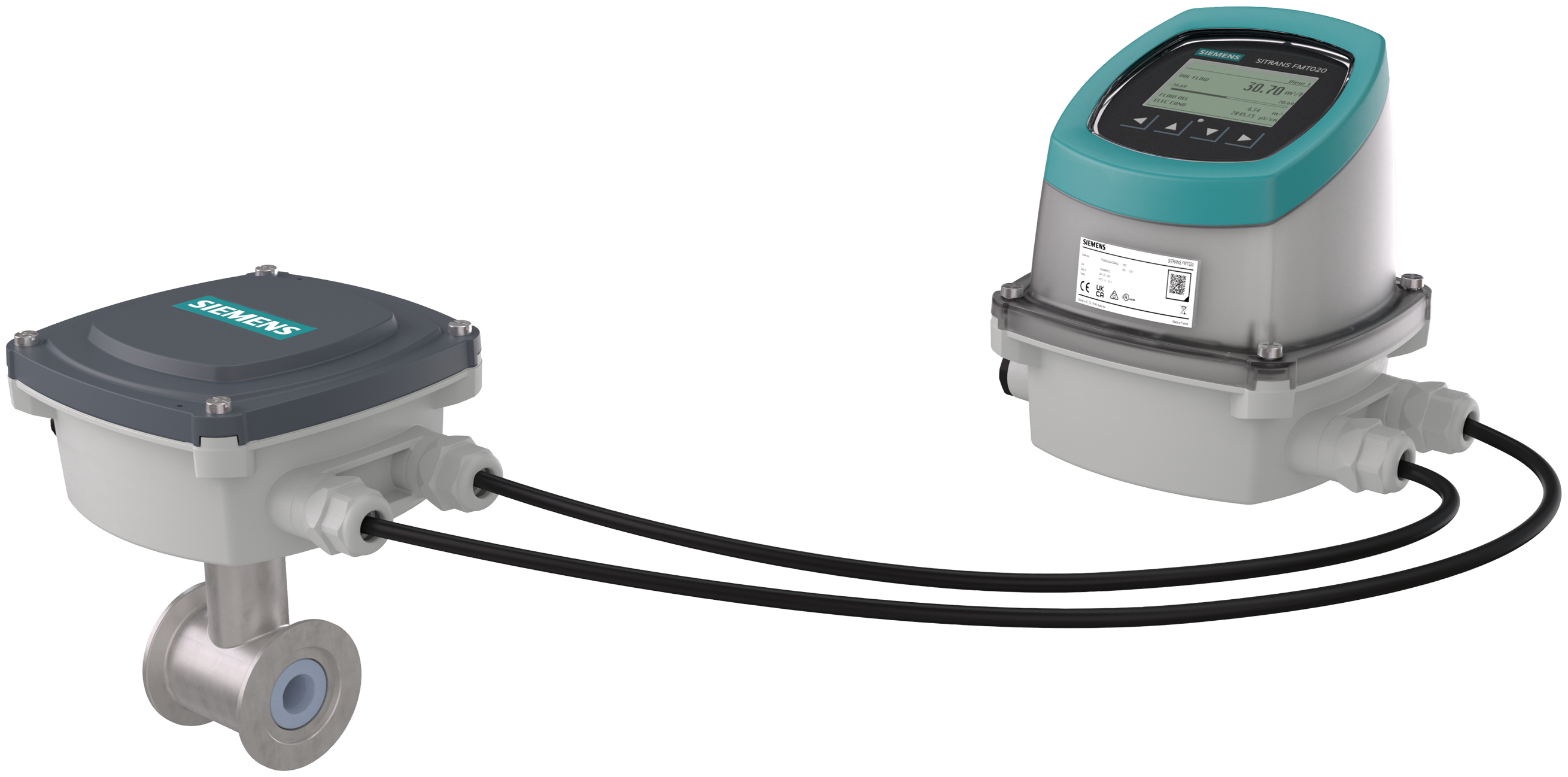

Request a quoteFMT020 transmitter can be supplied mounted either directly onto the sensor or remotely from the sensor. The transmitter offers the following features:
Back-lit LCD display which can be rotated through 90°, 180° and 270°
Can be programmed to show any of the following parameters, flow rate, totaliser values, current output reading and % of flow range
Detailed diagnostics and alarm readings
Output options include HART (4-20mA), digital pulse/frequency (for forward and reverse flows), relay (alarms), PROFIBUS PA/DP, MODBUS RTU, DeviceNet and Foundation Fieldbus
If you're interested in our Siemens MAG 1100W, please get in touch.
