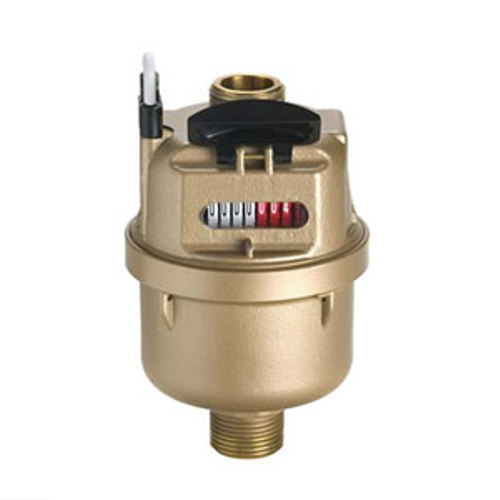

The V100 (formally (PSM-T meter) is the world's favourite domestic volumetric meter, with over 50 million already in service in over 100 countries.
Request a quoteAvailable in sizes ranging from 15mm to 40mm with flow rates between 7.5 litres/hr to 20 m3/hr
Optimum accuracy and performance at all times, in any position.
Suitable for installation in flooded chambers (IP68 rated).
R160 flow range (Q3/Q1) Class C equivalent
Meter size (mm) | 15 | 20 | 25 | 30 | 40 | ||
Meter thread size | Inches | G¾"A | G1"A | G1¼"A | G1½"A | G2"A | |
Overload flow rate | Q4 ±2% | m3/hr | 3.125 | 5 | 7.875 | 12.5 | 20 |
Permanent flow rate | Q3 ±2% | m3/hr | 2.5 | 4 | 6.3 | 10 | 16 |
Transitional flow rate | Q2 ±2% | litres/hr | 25 | 40 | 63 | 100 | 160 |
Minimum flow rate | Q1 ±5% | litres/hr | 15.625 | 25 | 39.375 | 62.5 | 100 |
Starting flow (approximate) | litres/hr | 2 | 2 | 6 | 12 | 20 | |
Output pulse | litres/hr | 0.5 | 0.5 | 5 | 5 | 5 | |
All models | Head loss at Q3 less than 0.63 bar, maximum water temperature 30°C, maximum pressure 16 bar |
If you're interested in our Honeywell (Elster Metering) V100 please get in touch.
