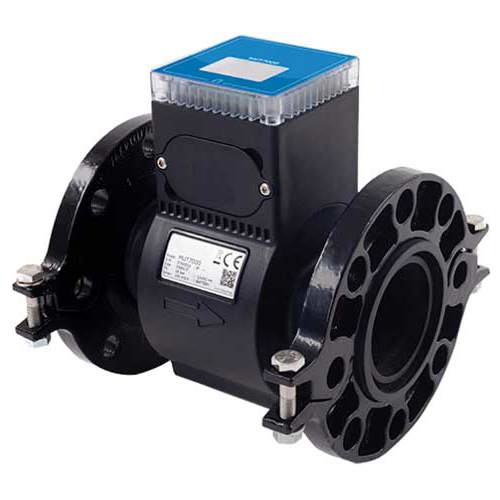

The Perfect Mechanical Meter Upgrade. Low cost, compact electromagnetic flowmeter with no moving parts, no straight pipe requirements and no additional pulse unit required.
Request a quoteReduced Bore: Perfect for picking up low nightline usage
The Reduction means there is no need for straight pipe before or after the meter
PN16 Flanged, with clamp-on flanges that can rotate to ensure correct orientation of meter
Battery life of between 5-10 years, replaceable internal pack
IP68, can live under water (max 1.5m)
FREE Bluetooth APP for Android & Apple users for programming/setup
Highly Accurate - ± 0,2%
Bi-Directional
Bluetooth connection means no need to lift heavy chamber covers & no requirement for street works
In-Built Data Logger
WRAS Approval
Empty pipe detection on measuring electrodes standard.
Sizes 50, 80, 100 & 150mm available from STOCK

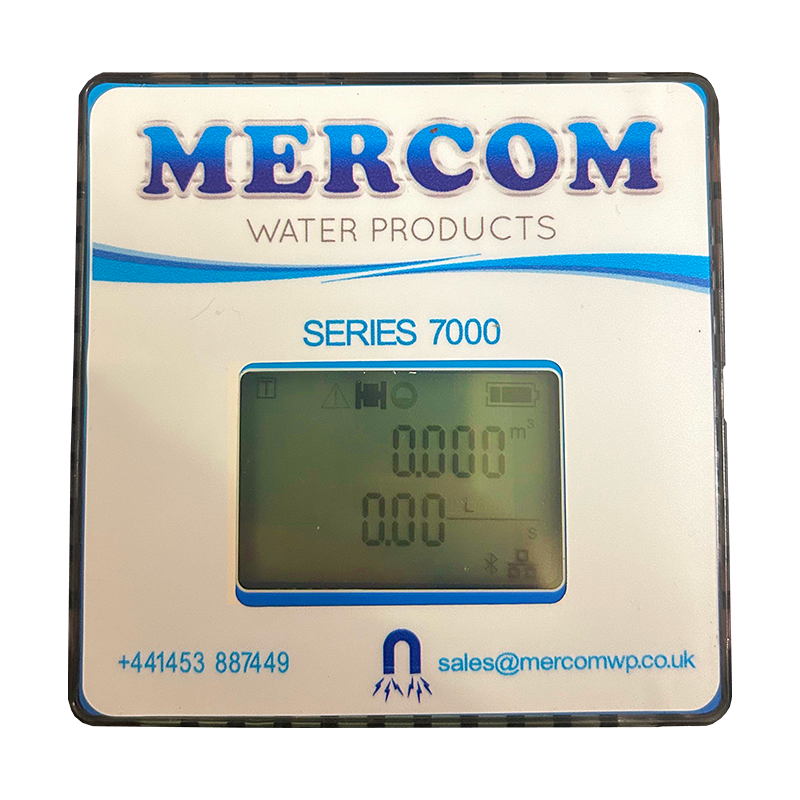

Clear Back Lit LCD Showing totaliser & flow rate. Via the mobile APP, you can customise the display to show your required flow settings (l/s or m3/h etc.) plus edit the decimal places and pulse rate.

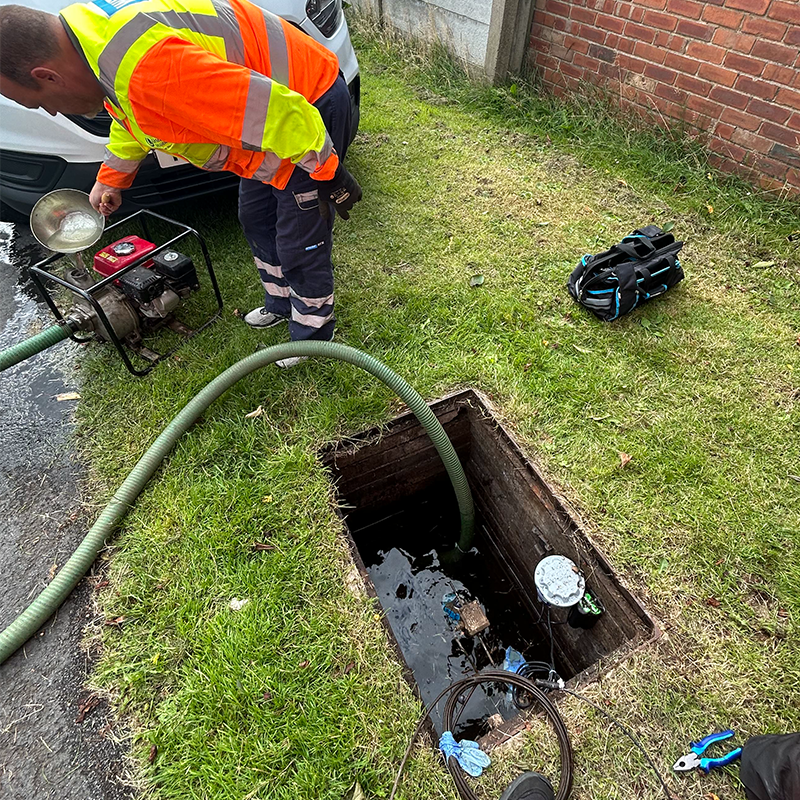

Bluetooth connectivity meaning no reason to lift heavy chamber covers which is great for health and safety plus time efficient + operatives do not need to work in the road or pump out flooded chambers.

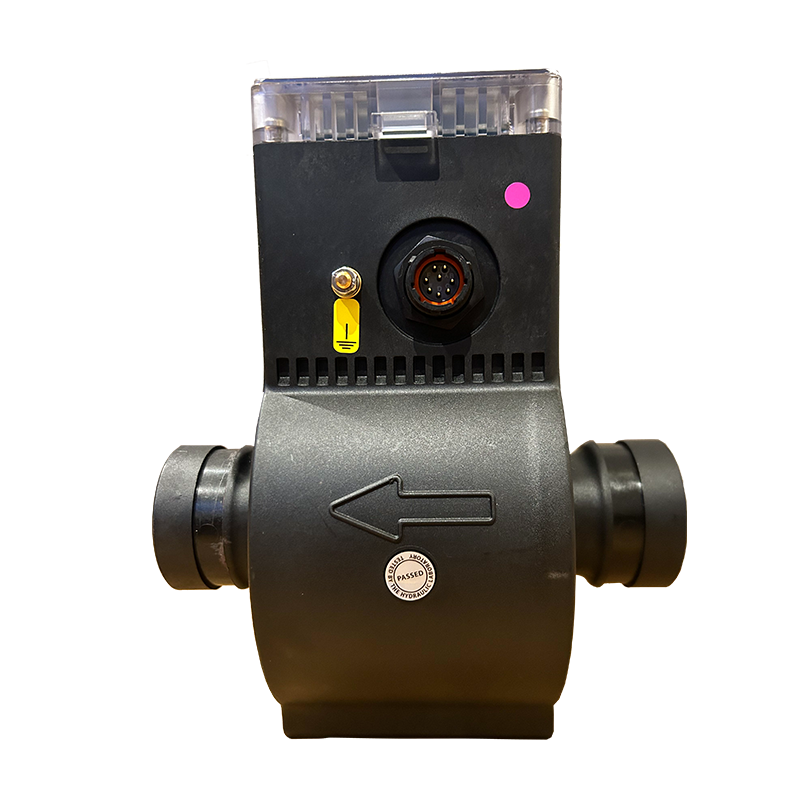

Pulse Output via Mil-Spec connector as shown above.

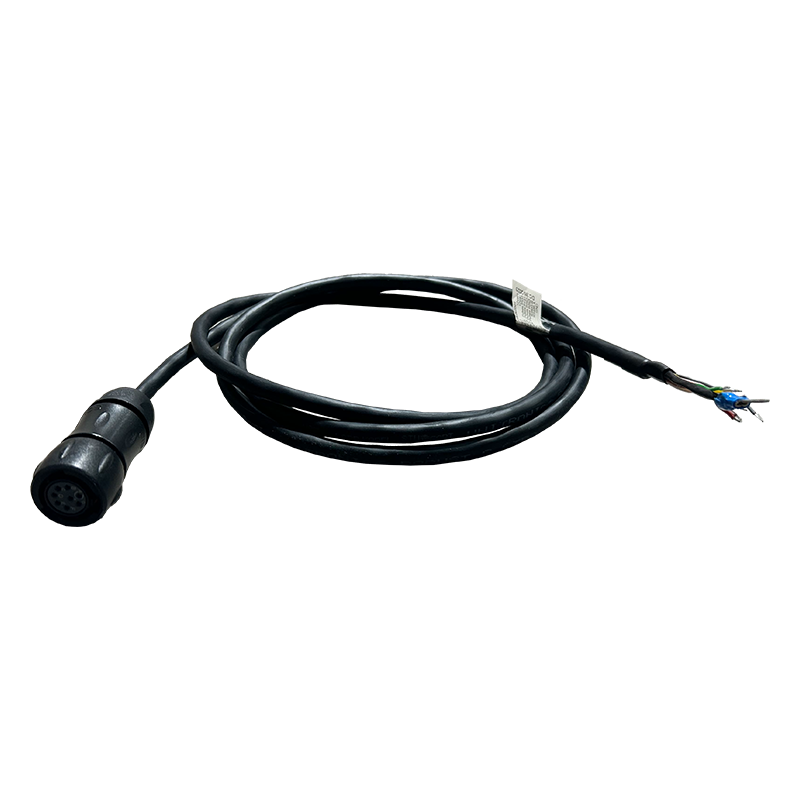

Pulse Output Cable, 2m as standard. Can be supplied with bare ends or fitted with a data logger manufactures connector.
Series 7000 | Mechanical Meters | |
|---|---|---|
Accuracy | 0.2% | 2% |
Stable Calibration | Yes | No (Under reads due to wear) |
Flow Rate & Totaliser | Yes | Total only |
Straight Pipe | No | Yes |
Affected by Particles | No | Yes |
Pulse Unit to Replace | No | Yes |
Phone App/Display | Yes | No |
The SERIES 7000 is programmed via a mobile APP called Mag-Net. Mag-Net is available for both APPLE & Andriod users as it uses Bluetooth for connection, the app can be downloaded from both app stores.
If you're interested in Bermad Series 7000 meter please get in touch.
Request a quote
