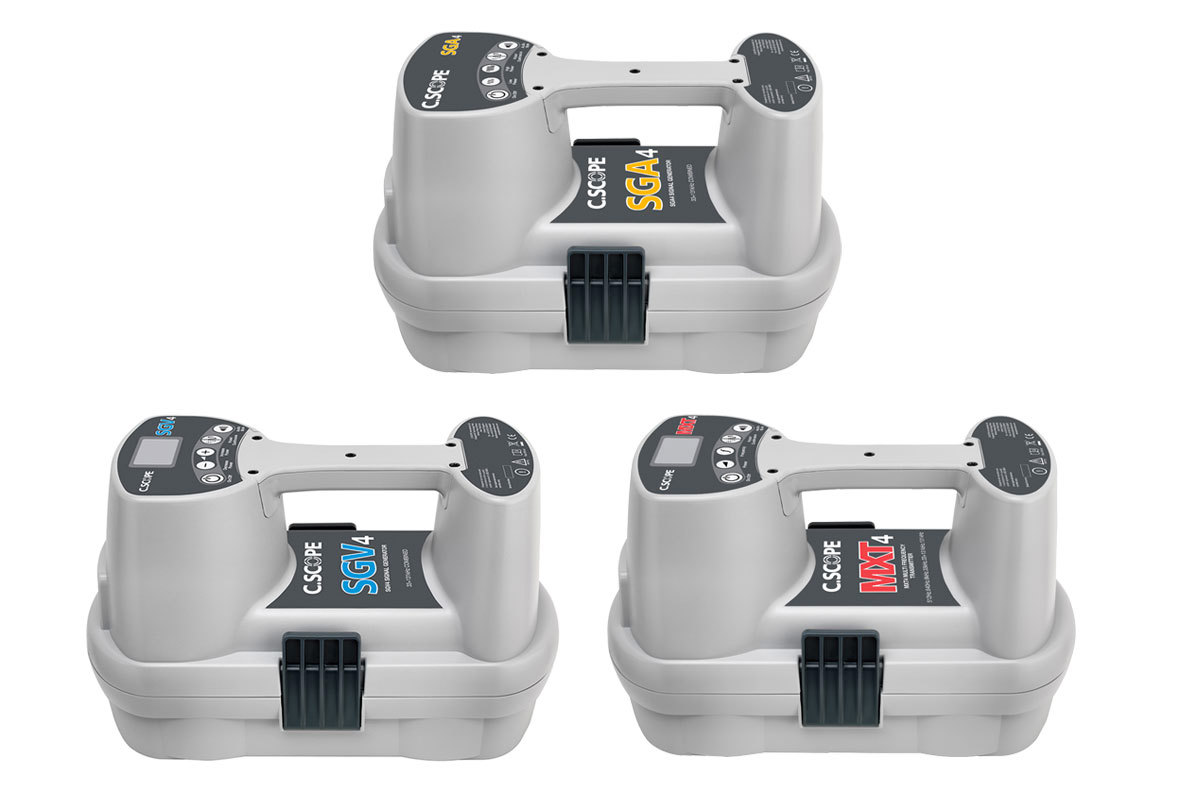

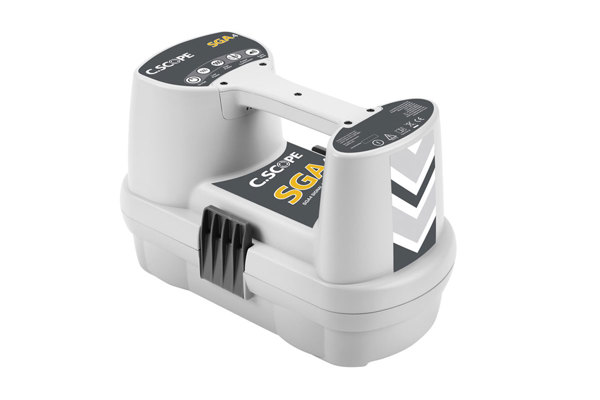

The SGA4 is a One Watt dual-frequency (33+131kHz) Signal Generator. Designed for use with a CXL4 or DXL4 Cable Avoidance Tool.
The C.Scope SGV4 is a One Watt dual-frequency (33+131kHz) Signal Generator with in-built Data Logging and backlit LCD display. Designed for use with a CXL4 or DXL4 Cable Avoidance Tool.

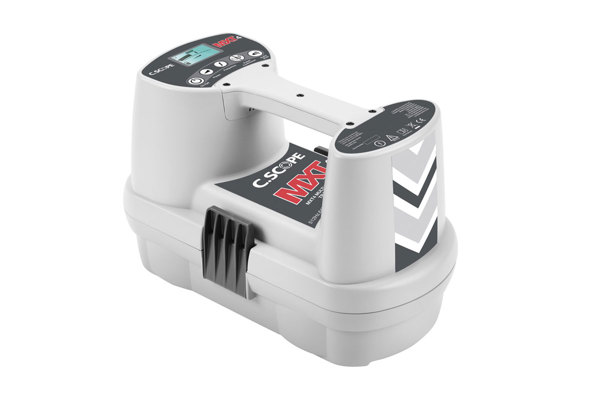

The C.Scope MXT4 is a digital One Watt multi-frequency Transmitter with in-built Data Logging and backlit LCD display. Designed for use with a MXL4 Precision Pipe & Cable Locator.
SGA4 | SGV4 | MXT4 | |
One Watt High/Low Power Output | ✔ | ||
One Watt 4-Level adjustable Power Output | ✔ | ✔ | |
Simultaneous 33+131kHz Signal | ✔ | ✔ | |
Six Signal Outputs: Simultaneous 33+131kHz, 512Hz Signal, 640Hz Signal, 8kHz Signal, 33kHz Signal, 131kHz | ✔ | ||
Pulsed or Continuous Output Signal | ✔ | ✔ | ✔ |
Three Signal Application Techniques:Direct Connection / Wraparound / Induction | ✔ | ✔ | ✔ |
No periodic Calibration required | ✔ | ✔ | ✔ |
In-built Accessory Tray | ✔ | ✔ | ✔ |
Automatic Daily Self Test | ✔ | ✔ | |
Data Logging of all Signal Generator activity | ✔ | ✔ | |
Data Transfer by USB | ✔ | ✔ | |
High Resolution Backlit Liquid Crystal Display | ✔ | ✔ | |
Data Transfer by USB. (BluetoothTM option) | ✔ | ✔ | |
Product Validation Certificate available | ✔ | ✔ |
The XL4 Generators do not require periodic recalibration, a fully Automated Daily Self Test (ADST) tests and confirms that the Generator is functioning at its optimum level each day. The result of each ADST is recorded and stored within the data file and can be used to produce a Product Validation Certificate using the PC Toolkit. If you should require third-party Test and Calibration certificates to comply with your own internal regulations, this service can still be offered.
The XL4 range of Generators retain the reliability and durability expected of all C.Scope products and now come with a 3 year warranty as standard.
Each XL4 Generator is supplied with 4 x D (LR20) alkaline batteries sealed in a secure fitted battery compartment and will typically provide approximately 40 hours of service depending on use. The Generators can also be used with NiMH rechargeable batteries.
This includes a direct connection lead, auxiliary 10 metre earth lead, connection magnets, earth stake and instruction manual.
For full product information on the C-Scope Signal generator range please contact us
Request a quote
