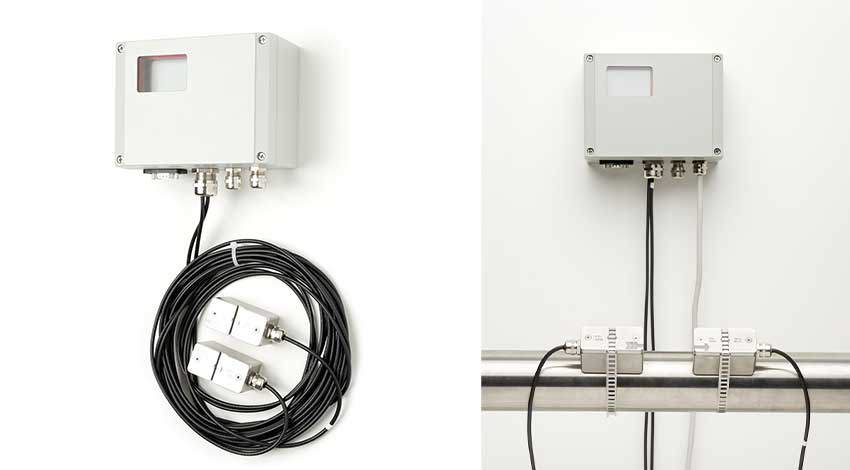

KATflow100 KATflow100 is a compact ultrasonic flow transmitter designed for permanent installation and flow measurement on single pipes. This instrument offers a cost-affective option owing to its simpified specification and the availability of a range of transducer types. The varied functionality and simple operation make it the perfect product for large projects and customer specific solutions.
Request a quoteSuitable for use on pipe sizes ranging from 10mm to 3,000mm
Can be installed on to pipework with no interuption to the flow, this offers a cost affective solution, especially on larger sized mains
Robust IP66 die-cast aluminium flowmeter enclosure
Low cost of ownership with LCD display and 5 key keypad showing flow rate and bi-directional flow totaliser function
Output options include current (typically 4-20mA), digital open collector, digital relay, voltage and frequency
Up to 4 output options available for for 4-20mA, digital open-collector, digital relay, voltage, frequency and Hart compatability
Optional transducer mounting accessories to best suit the users requirements
The transducers can be supplied suitable for submersion in water if required (IP68 rated)
For more information, please get in touch on 01453 887449 or sales@mercomwp.co.uk
Request a quote

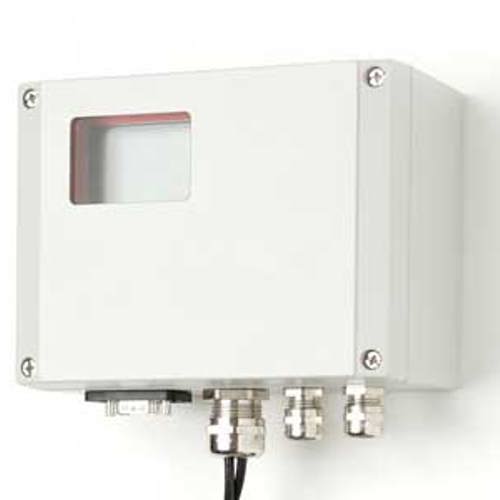

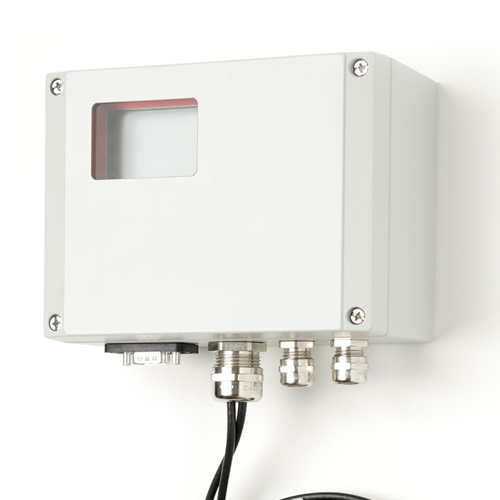

The transmitter can be installed up to 105 meters from the sensing transducers. The transmitter offers the following features:
Back-lit LCD graphic display
The display can be configured to show flow rate, totaliser and diagnostic functions
Communication options include, RS232, USB cable, RS485 or Modbus RTU
Power supply options are 100-240v AC 50/60Hz, 9-36v DC and solar power/battery (on request)
If you're interested in our Katronic KATflow100 please get in touch.
