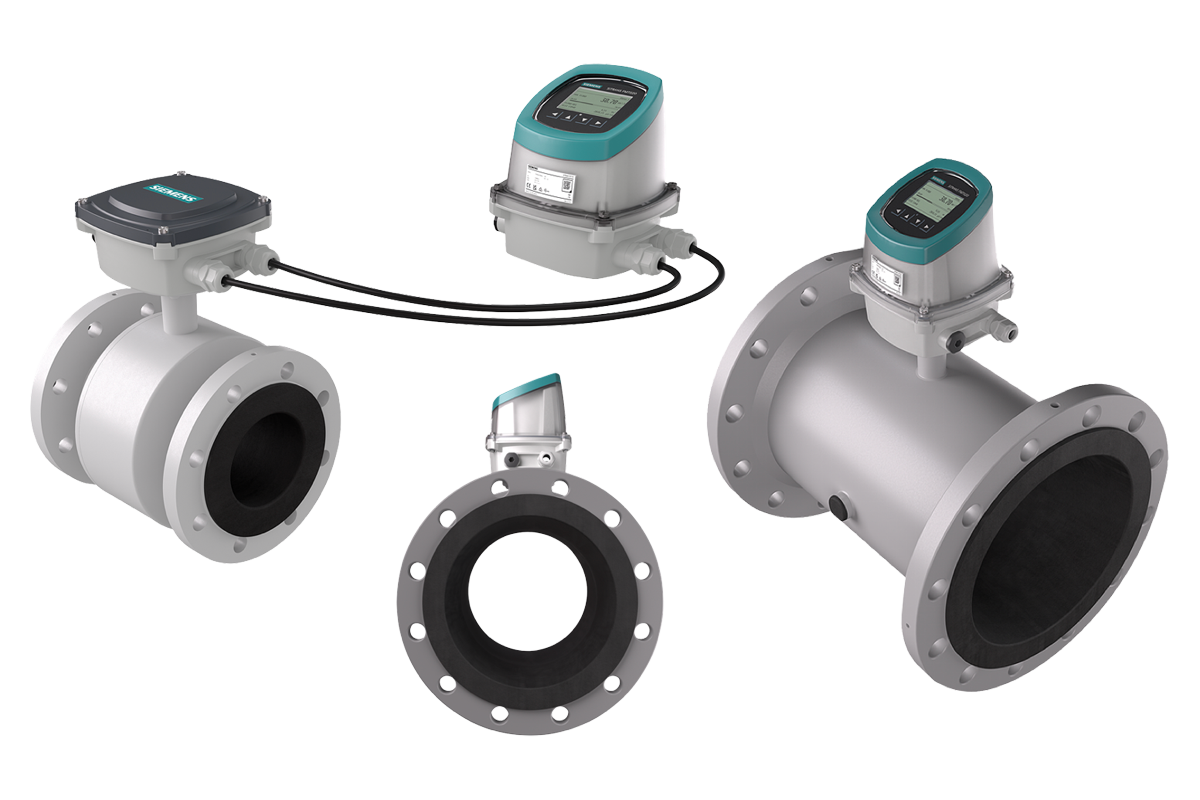

The Siemens FM520 system comprises of the FMS500 flow sensor and the FMT020 Transmitter. Available for clean and dirty water applications with MCERT & WRAS approvals. The FMT020 has a modular design providing flexibility and ease of use.
Request a quote

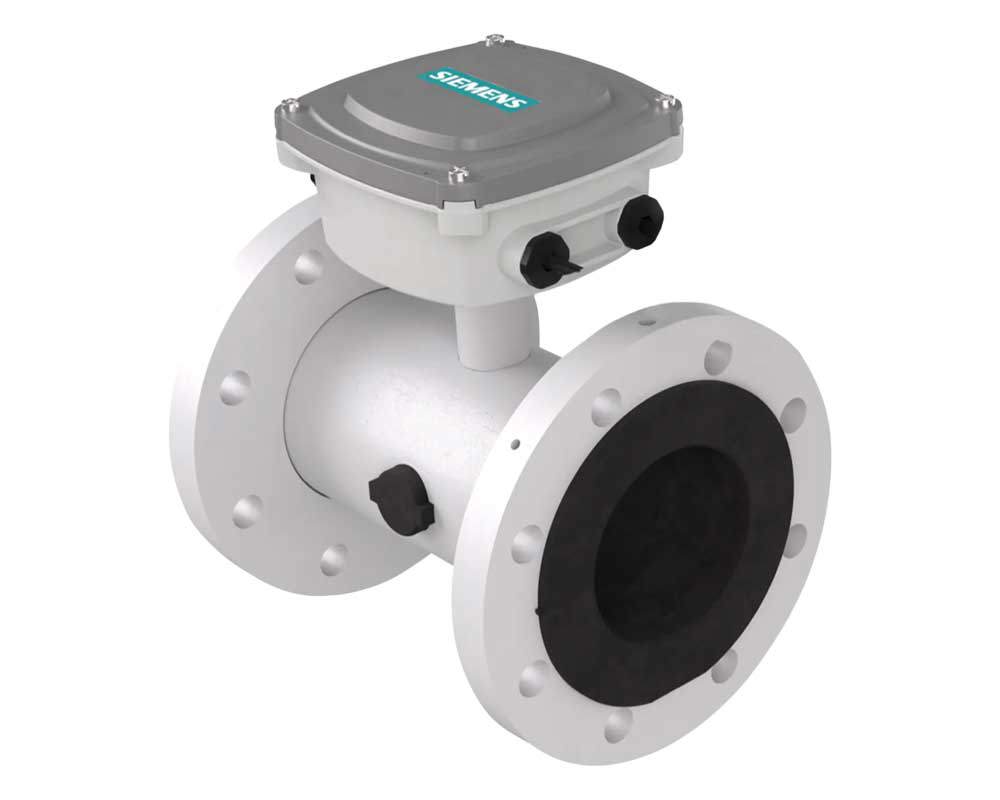

EPDM lining specifically for drinking water applications
NBR rubber liner for all water and wastewater applications
Increased low flow accuracy for water leak detection
Suitable for underground installation and permanent immersion (IP68) or underwater installation
Integrated grounding electrodes - no grounding rings required for many applications
SENSORPROMTM Technology provides an automatic upload of start-up settings & calibration data for easy commissioning
Plug & Play - allows easy on-site replacement and commissioning of the transmitter in just a few minutes
Mounting flexibility - compact or remote installation possible
Measuring range | 0 to 10 m/s |
Nominal sizes | From DN 15 to DN 1200 (1/2" to 48") |
Accuracy | Standard 0.4% of rate, opinion for 0.2% of rate |
Operating pressure | Max. 40 bar (Max.580 psi)(dependent on sensor size) |
Ambient temperature | -10 to 70°C (14 to 158°F) |
Medium temperature | -10 to 70°C (14 to 158°F) |
Liners | EPDM to EDm |
Electrodes | Hastelloy C-276 Built-in grounding electrodes |
Material | Carbon steel, with corrosion resistant two-component epoxy coating |
Drinking water approvals | EPDM::WRAS, NSF/ANSI Standard 61, DVGW 270, AS/NZS 4020, GB/T 5750, ACS and BelgAqua |
Cost-effective solution, backward compatible with older existing Mag5100w flowmeter sensors

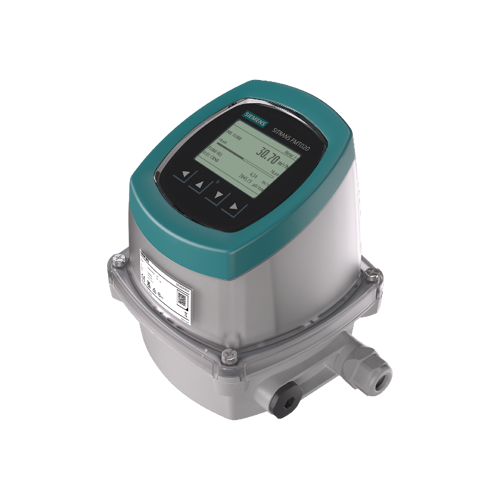

Equipped with a large, rotatable, backlit 14-digit graphical display for optimal visibility in all mounting positions
Easy programming and commissioning with menu wizard
Compact or remote mounting possible with the same housing
Empty-pipe monitoring and device self-check

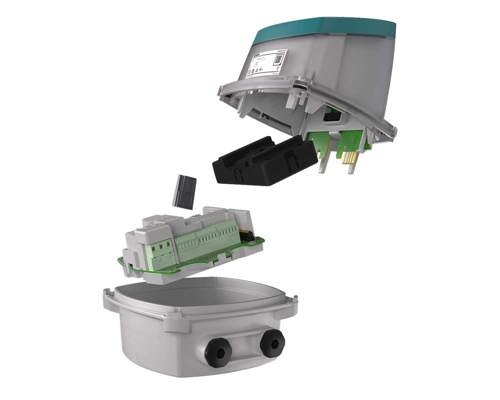

Enhanced diagnostics like Plug & Play modules allow easy on-site replacement and commissioning of the transmitter in just minutes
SITRANS MAG flow transmitters feature on-site verification with traceable certification. Additional levels of verification are available with SITRANS FMT020. This state-of-the-art transmitter can be configured for the desired level of checks - from self-verification and diagnostics to connection with an external, new-generation SITRANS Verificator.
Measurement of | Volume flow Flow velocity Electrical conductivity |
Input/Output | 1 current output 1 digital output 1 relay output |
Communication | HART PROFINET EtherNet/IP MODBUS RTU Profibus Bluetooth |
Display | Graphical 60x40mm, 14-digit |
Enclosure | Polycarbonate IP66/67, NEMA 4X/6P |
Power supply | AC Version: 100 to 240 V 50/60 Hz DC Version: 12 to 42 V |
Ambient temperature | -40 to +65°C (-40 to +149°F) |
Approvals | CE (LVD, EMC, RoHS), UKCA UL, CSA certified per standard EN / IEC 61001-1 |
If you're interested in our Siemens FM520 please get in touch.
