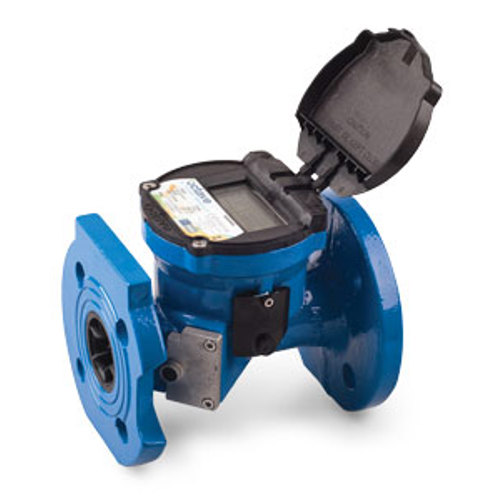

A revolutionary, precise and ultra reliable ultrasonic bulk water meter measuring bi-directions flow with no moving parts and battery life up to 15 years.
Request a quoteAvailable in sizes from 50mm to 150mm with flow ranges from 0.08 m3/hr and 1250 m3/hr.
Integral LCD display showing flow rate, forward & reverse totaliser and alarms for low battery & fault measurement. The meter offers a dual pulse output (can be configured to suit customer requirements at order stage), 4-20mA output (loop powered), encoder output and Modbus protocol output.
Meter performance acc. ISO 4064 -rev.2005
Meter size (mm) | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | ||
Meter flange | Threaded | PN16 | PN16 | PN16 | PN16 | PN16 | PN16 | PN16 | PN16 | ||
Overload flow rate | Q4 ±2% | m3/hr | 50 | 50 | 50 | 80 | 125 | 313 | 500 | 1250 | 1250 |
Permanent flow rate | Q3 ±2% | m3/hr | 40 | 40 | 40 | 63 | 100 | 250 | 400 | 1000 | 1000 |
Transitional flow rate | Q2±2% | m3/hr | 0.256 | 0.125 | 0.125 | 0.2 | 0.32 | 0.8 | 1.28 | 3.2 | 3.2 |
Minimum flow rate | Q1 ±5% | m3/hr | 0.16 | 0.08 | 0.08 | 0.125 | 0.2 | 0.5 | 0.8 | 2 | 2 |
Starting flow | m3/hr | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.2 | 0.2 | 0.5 | 0.5 | |
Turndown ratio R | Q3/Q1 | R value | 250 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
Headloss at Q3 | Bar | 1.171 | 1.171 | 1.171 | 1.615 | 1.626 | 1.869 | 1.169 | 1.474 | 0.802 | |
Output Pulse (default settings) | 0.802 | Litres/pulse | 10 | 10 | 10 | 10 | 100 | 100 | 100 | 100 | 100 |
All meter sizes | Maximum temperature is 50°C and maximum pressure is 16 bar |
If you're interested in our Arad Octave Flowmeter please get in touch.
