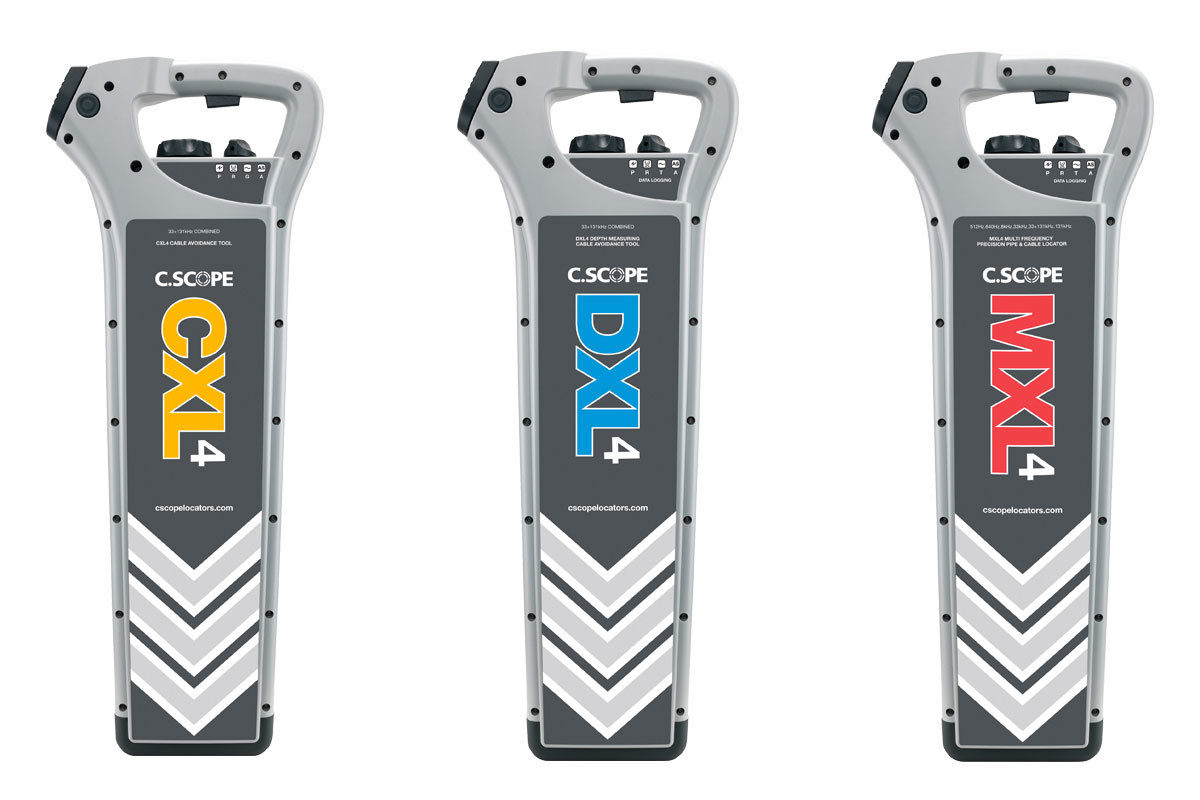

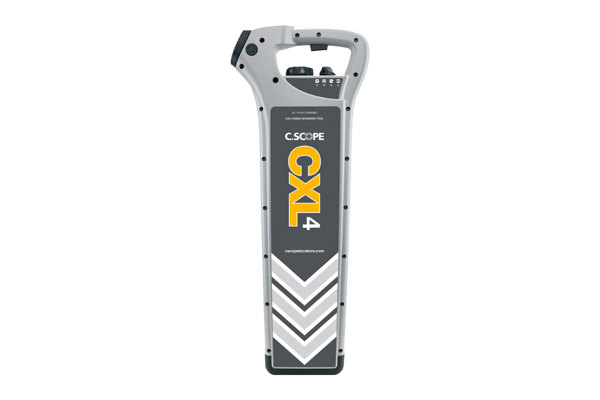

The CXL4 is a dual-frequency (33 + 131 kHz) Cable Avoidance Tool and is available in 3off versions. The standard CXL4, the CXL4-D with in-built data logging and the CXL4-DBG with in-built data logging, Bluetooth connectivity & GPS tracking. All versions are designed for use with either the SGA4 or SGV4 Signal Generators.

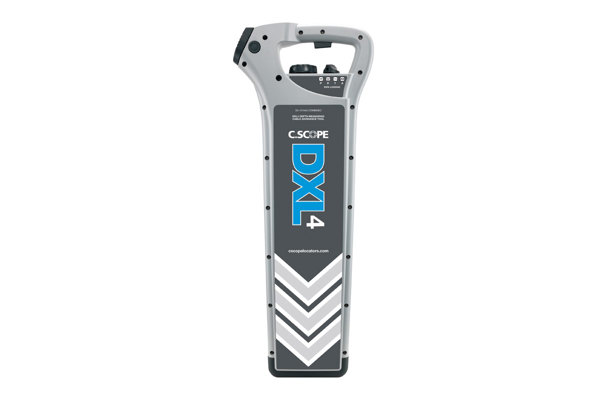

The DXL4 is a dual-frequency (33 + 131 kHz) Cable Avoidance Tool with depth measurement and is available in 2off versions. The DXL4-D with in-built data logging and the DXL4-DBG with in-built data logging, Bluetooth connectivity & GPS tracking. Both versions are designed for use with either the SGA4 or SGV4 Signal Generators.
The MXL4 is a high performance multi-frequency (512/640Hz up to 131kHz) precision pipe and cable locator with depth measurement and is available in 2off versions. The MLX4-D with built-in data logging and the MXL4-DBG with built-in data logging, Bluetooth connectivity and GPS tracking, Both versions are used with the MXT4 multi frequency transmitter.
| DXL4 | MXL4 | |
Power Mode | ✔ | ✔ | ✔ |
Radio Mode | ✔ | ✔ | ✔ |
Generator Mode: Simultaneous 33+131kHz 33kHz signal detection for all purpose tracing and utility avoidance + 131kHz for optimum detection for short length, small diameter or unearthed cables | ✔ | ✔ | ✔ |
All Scan Mode | ✔ | ✔ | ✔ |
Overload Protection | ✔ | ✔ | ✔ |
Alarm ZoneTM | ✔ | ✔ | ✔ |
Peak Hold | ✔ | ✔ | ✔ |
Dynamic Swing Sensor | ✔ | ✔ | ✔ |
Automatic Daily Self Test | ✔ | ✔ | ✔ |
Data Logging of all Locator activity (option) | ✔ (optional) | ✔ (optional) | ✔ (optional) |
Data Transfer by USB. (BluetoothTM option) | ✔ (optional) | ✔ (optional) | ✔ (optional) |
In-Built GPS position logging (option) | ✔ (optional) | ✔ (optional) | ✔ (optional) |
Connectivity to Survey level GPS products (option) | ✔ (optional) | ✔ (optional) | ✔ (optional) |
High Resolution Backlit Liquid Crystal Display | ✔ | ✔ | ✔ |
No periodic Calibration required | ✔ | ✔ | ✔ |
Accurate Depth Indication | ✔ | ✔ | |
Data Logging of all Locator activity | ✔ | ✔ | |
Transmitter Mode: Simultaneous 33+131kHz signal detection for utility avoidance 33kHz signal detection for all purpose tracing and utility avoidance 131kHz for optimum detection of short length, small diameter or unearthed cables 8kHz signal detection for tracing over longer distances Ultra low 512Hz signal detection for specialist tracing Ultra low 640Hz signal detection for specialist tracing | ✔ |
The XL4 locators do not require periodic recalibration, a fully Automated Daily Self Test (ADST) tests and confirms that the Cable Avoidance Tool is functioning at its optimum level each day. The result of each ADST is recorded and stored within the data file and can be used to produce a Product Validation Certificate using the PC Toolkit. If you should require third-party Test and Calibration certificates to comply with your own internal regulations, this service can still be offered.
The XL4 range of Cable Avoidance Tools retain the reliability and durability expected of all C.Scope products and now come with a 3 year warranty as standard.
Each XL4 locators are supplied with 8 x AA (LR6) alkaline batteries sealed in a secure fitted battery compartment and will typically provide approximately 40 hours of service depending on use. The locators can also be used with NiMH rechargeable batteries. The battery compartment also houses a spare battery holder.
