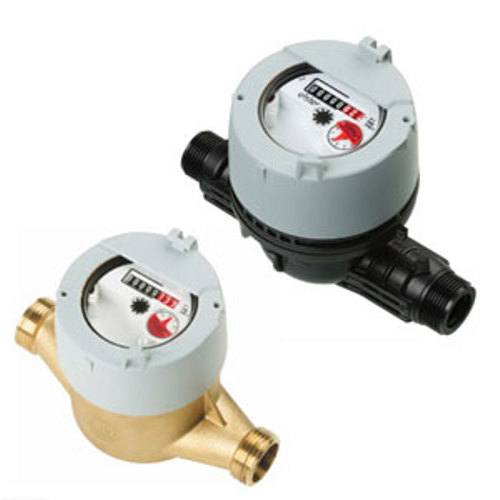

The V200 in-line meter is designed for revenue metering, network monitoring, distribution and industrial applications.
Request a quoteThese meters provide optimum accuracy and performance regardless of whether they are installed in horizontal, vertical or inclined pipelines.
Available in sizes ranging from 15mm to 40mm with flow rates between 6.25 litres/hr to 20 m3/hr.
Suitable for installation in flooded chambers (IP68 rated).
R400 flow range (Q3/Q1) for 15mm meter, R315 for 20mm and R160 for 25mm to 40mm meters
Meter size (mm) | 15 | 20 | 25 | 30 | 40 | ||
Meter thread size | Inches | G¾"A | G1"A | G1¼"A | G1½"A | G2"A | |
Overload flow rate | Q4 ±2% | m3/hr | 3.125 | 5 | 7.875 | 12.5 | 20 |
Permanent flow rate | Q3 ±2% | m3/hr | 2.5 | 4 | 6.3 | 10 | 16 |
Transitional flow rate | Q2 ±2% | litres/hr | 10 | 20.32 | 63 | 100 | 160 |
Minimum flow rate | Q1 ±5% | litres/hr | 6.25 | 12.7 | 39.375 | 62.5 | 100 |
Starting flow (approximate) | litres/hr | 1 | 2 | 6 | 12 | 20 | |
Output pulse | litres/hr | 1 | 1 | 1 | 1 | 1 | |
Head loss, temperature & pressure | 15mm meter is 1 bar at 3.7 m3/hr, all other meter sizes are less than 0.63 bar at Q3. Maximum water temperature 30°C and maximum pressure 16 bar |
If you're interested in our Honeywell (Elster Metering) V200 please get in touch.
