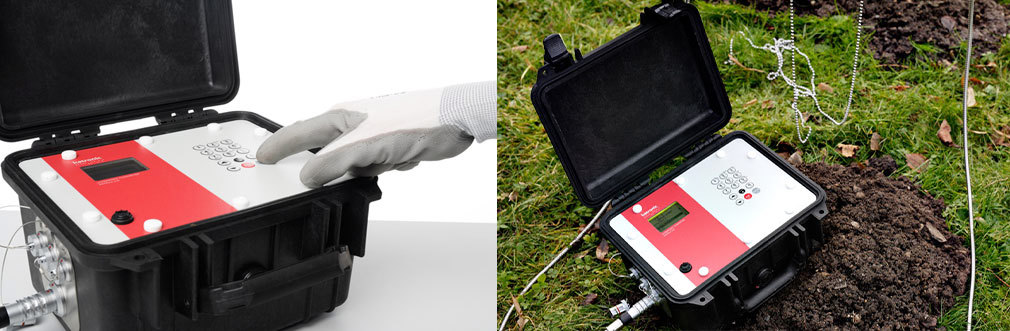

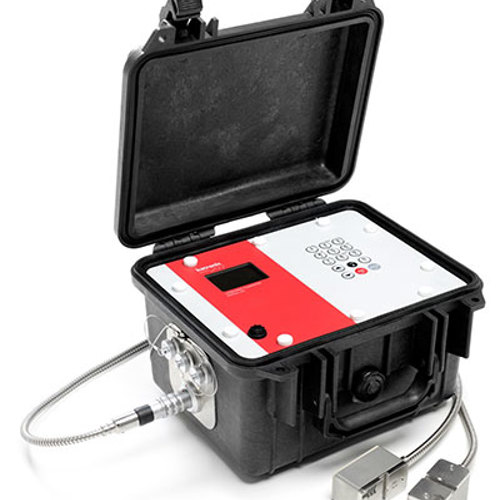

KATflow210 is a portable flowmeter designed for situations which require a reliable flow measurement regardless of the conditions in which it needs to be operated. With advanced battery technology and durable waterproof housing the meter offers long-term installations in remote areas where access to power is limited and exposure to the worst of elements is likely.
Request a quoteSupplied in a rugged IP67 carry case as standard
Suitable for use on pipe sizes ranging from 25mm to 2,500mm
Can be installed on to pipework with no interuption to the flow which means no shut down or loss of production, no costly or risky engineering work, no contact with the fluid (therefore hygenic) and low maintenance
Optional transducer mounting accessories to best suit the users requirements
The transducers can be supplied suitable for submersion in water if required (IP68 rated)
Powered by 1, 2 or 3off lithium iron phosphate battery packs (1 pack will give 7 days continuous use, 2 packs 14 days and 3 packs 21days) and supplied complete with power adaptor (100-240v AC input and 9v DC output)
Up to four input and outputs module options available
Option for integral data logger with up to 100,000 measurements
Single or dual measurement channel options
For more information, please get in touch on 01453 887449 or sales@mercomwp.co.uk
Request a quote
The transmitter can be installed up to 15 metres from the sensing transducers. The transmitter offers the following features:
Back-lit LCD graphic 3-line (selectable) display
The display can be configured to show flow rate, totaliser and diagnostic functions
USB communication
Output options include current (typically 4-20mA), digital open collector pulse, digital relay, voltage and frequency
USB Communication cable
If you're interested in our Katronic KATflow210 please get in touch.
