The EuroMag range of electromagnetic flowmeters are fully customisable with a solution to every installation. Welded by a dictated robot for a flawless finish every time and painted in eye catching blue. Battery powered, Mains powered, Full bore & Reduced bore.
Request a quote
Mains Powered Transmitter
Battery Powered Transmitter
Reduced Bore Flow Sensor
Full Bore Flow Sensor
Looking for a full-bore battery powered flowmeter? Match the MUT2200EL flow sensor with the MC406 battery powered transmitter.
Or maybe you need a reduced bore battery powered meter? Match the MUT2300 flow sensor with the MC406 transmitter
Two Transmitters, Two Flow Sensors, Your Application, Your Choice

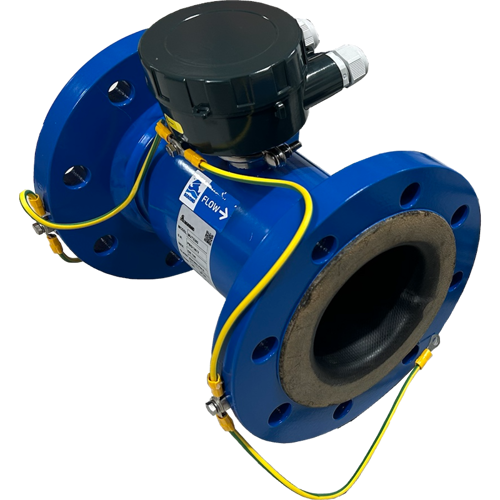

Request a quoteMUT2300

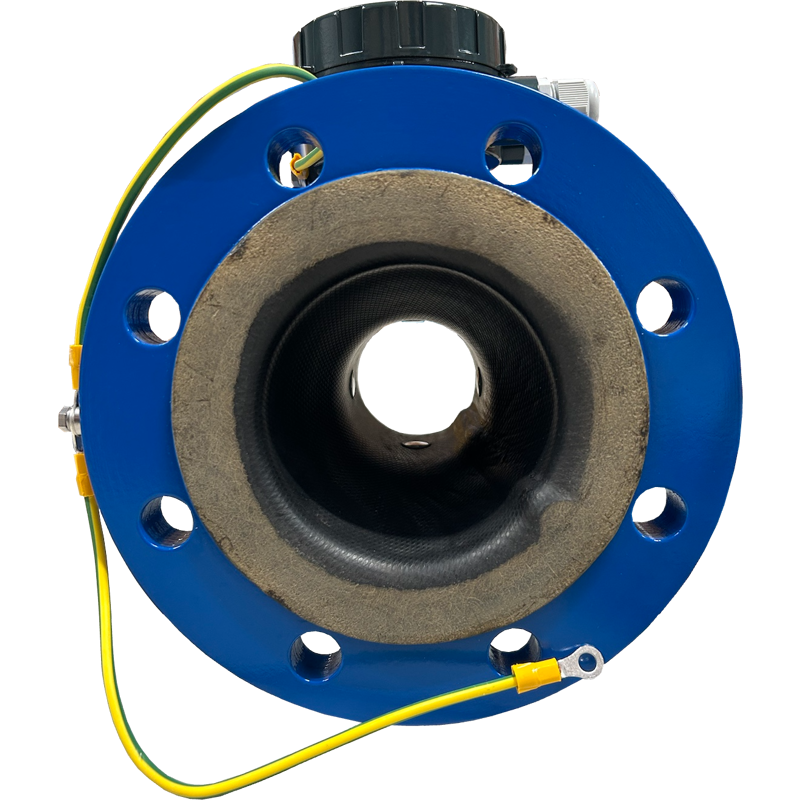

Reduced Bore: Important feature for picking up low nightline usage. The Reduction means that there is no requirement for straight pipe before or after the meter
PN16 Flanged with industry standard body lengths meaning replacing old assets is simple
Burriable sensor for installations where chambers are not possible
Sensor cables fitted with Mil-Spec connectors for a quick plug and play installation
IP68 & Highly Accurate ± 0.2% + WRAS approved

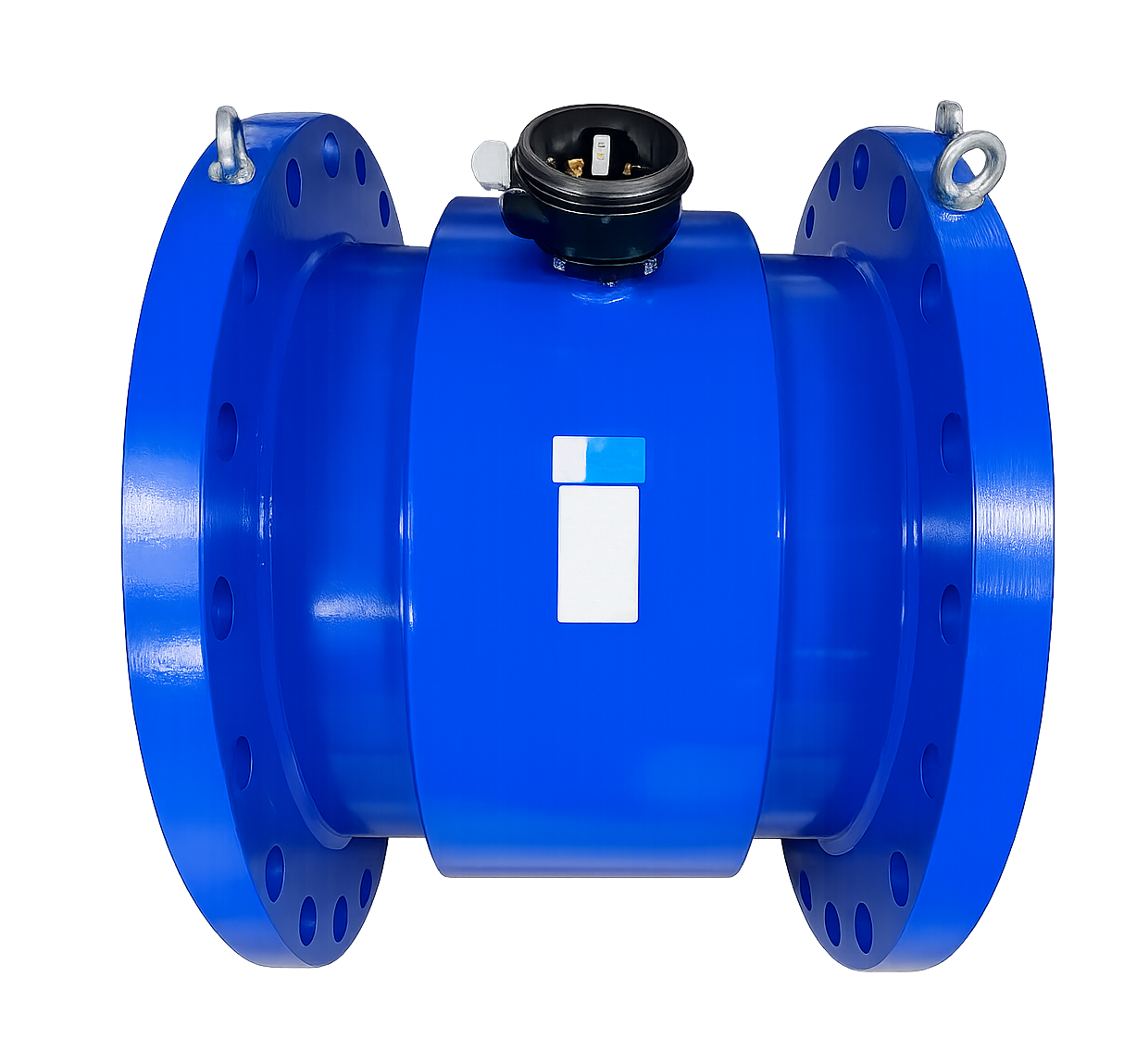

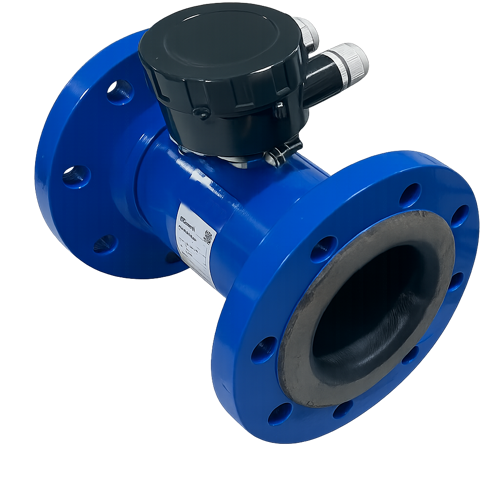

MUT2200EL
Full Bore flow sensor for clean & waste water (up to 30% solids on waste)
PN16 Flanged with industry standard body lengths
Burriable sensor for installations where chambers are not possible
IP68 & Highly Accurate ± 0.2% + WRAS approved
Verification unit available

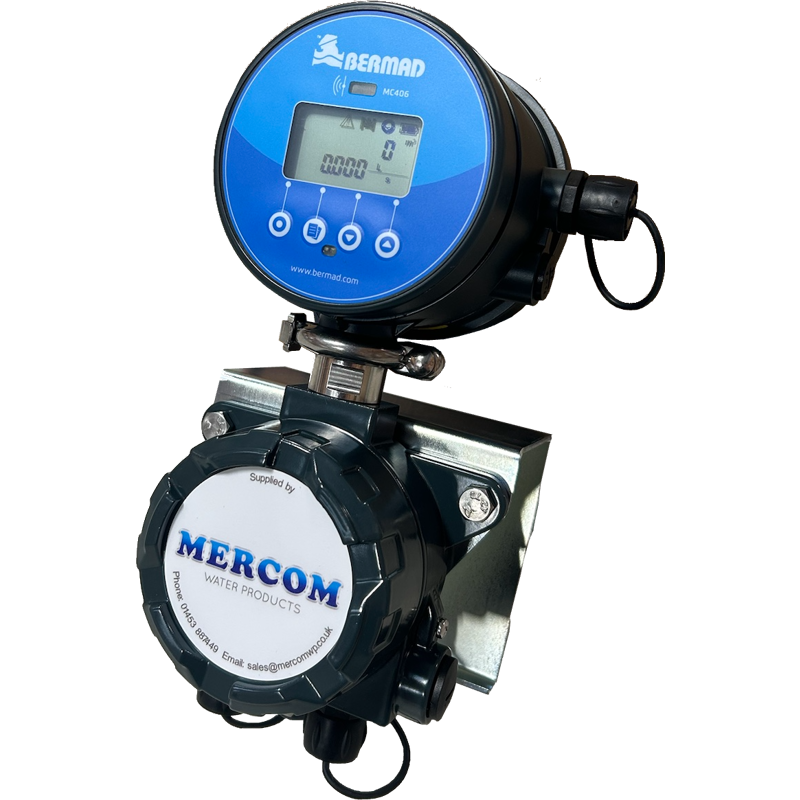

MC406
Battery powered via internal replaceable battery pack
Pulse and Modbus outputs as standard
Programmable via push buttons or FREE mobile bluetooth APP for Android and Apple devices
IP68 with Mil-Spec connector for quick and easy plug and play installation
Fully customisable LCD showing flow rate and totaliser on one screen. Change flowrates from M3/h to I/s, MLD etc...
MC608
Mains powered. 90..264 Vac or 12/24 Vac/dc power options available
4-20mA, Pulse & Modbus outputs as standard (HART optional extra)
Simple set up via push buttons on the display front
IP68 for permanent installation outdoors
Clear, fully customisable LCD

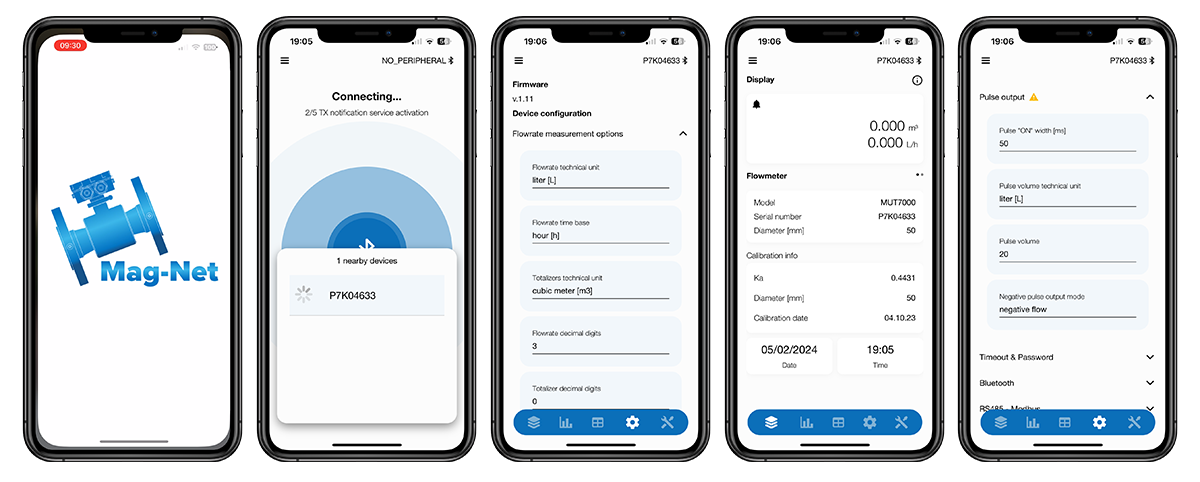

The MC406 Transmitter has two programming methods. The first is via on screen push buttons and the latter is via a mobile APP called Mag-Net. Mag-Net is available for both Apple and Android users as it uses bluetooth for connection, the app can be downloaded from both app stores.
A nice feature of using bluetooth to communicate is the distance of which you need to be from the physical asset. If the sensor and transmitter are installed in the middle of a road, you can pull up next to the chamber, and connect to the unit from the comfort of your vehicle.
The app shows a live flow rate, totaliser, settings and more, there really is no need to see the physical display. Best of all, it is a FREE download with no hidden/extra charges to pay.
The MC406 Transmitter when paired with either flow sensor can have up to 30m of cable length between both parts
The MC608 Transmitter when paired with either flow sensor can have up to 100m of cable length between both parts
All 4 items are IP68 for permanent submersion
Both the 2300 and 2200 flow sensors have no moving parts meaning no blockages and no strainer requirements
Both sensors have WRAS approved lining for drinking water applications
