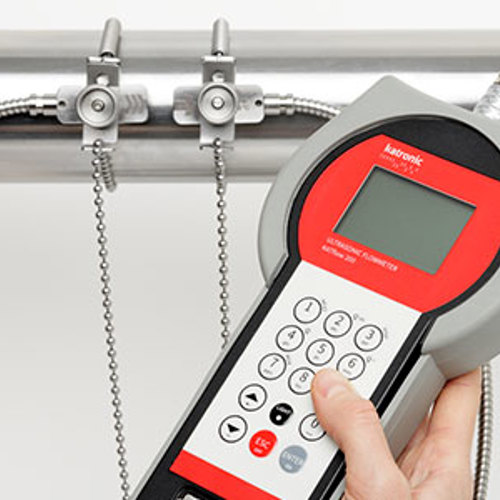

KATflow200 is a lightweight easy to use portable battery powered ultrasonic flowmeter in a robust housing. This meter can be operated one-handed making it ideal for use in those difficult to get to locations, typical applications include checking flow rates in pipes where a flowmeter is not fitted, checking the performance of existing in-line flowmeters, pump testing etc.
Request a quoteABS IP65 rated encloser fitted with rubber shock protective cover
Suitable for use on pipe sizes ranging from 10mm to 6,500mm
Can be installed on to pipework with no interuption to the flow, this offers a cost affective solution to measuring flows in locations where a flowmeter is not currently installed
Optional transducer mounting accessories to best suit the users requirements
The transducers can be supplied suitable for submersion in water if required (IP68 rated)
Integral rechargeable batteries (4 x NiMH AA 2,850 mAh) offering up to 24 hours life when fully charged and supplied complete with power adaptor (100-240v AC input and 9v DC output)
Optional external battery pack (12v 105 Ah) offers an extended battery life up to 7 days
Option for integral data logger with up to 100,000 measurements

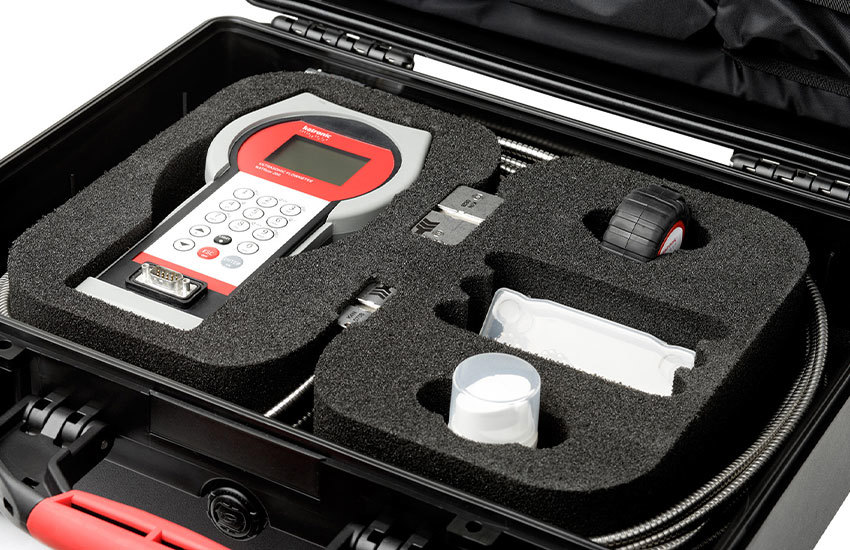

Optional crush proof IP67 transport case or soft transport bag
For more information, please get in touch on 01453 887449 or sales@mercomwp.co.uk
Request a quote
The transmitter can be installed up to 15 metres from the sensing transducers. The transmitter offers the following features:
Back-lit LCD graphic 3-line (selectable) display
The display can be configured to show flow rate, totaliser and diagnostic functions
Serial RS232 USB communication
If you're interested in our Katronic KATflow200 please get in touch.
