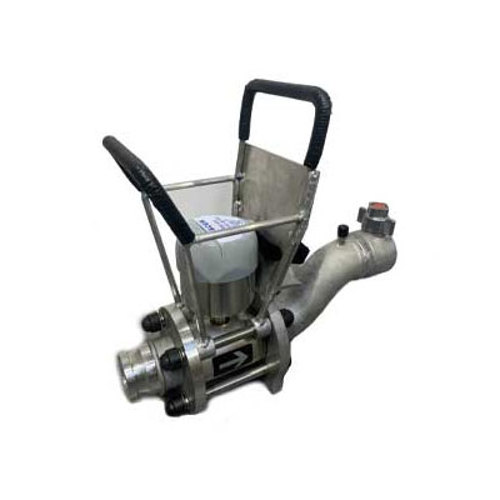

Series 4000 Portable Hydrant Flowmeter

Key features and benefits

• Rugged and robust stainless steel sensor design ensures a long maintenance free life under arduous conditions

• No moving parts in the sensor to get damaged by debris in the water or to wear, this will significantly reduce the requirements for maintenance and re-calibration

• Lightweight design, only 9.5 kg (without data logger) making it easier to carry and install.

• Wide operating flow range, from 0.1 to 22 litres/sec. (0.36 to 79.2 m3/hr) can be measured with an accuracy of +/-2% of actual flow rate (at 0.1 litre/sec, the meter accuracy is +/- 0.002 litres/sec)

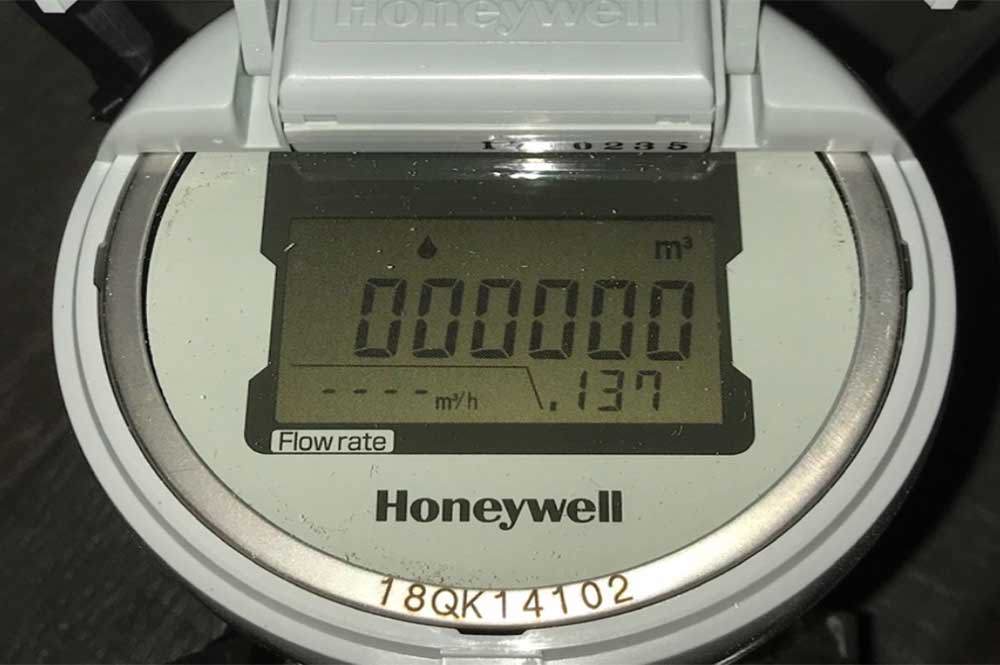

• A large, bright and easy-to-read LCD is continuously powered to give uninterupted information of instantaneous flow rate and volume totaliser readings at all times

• 0.5 second sampling rate ensuring accurate and reliable flow measurement

• The 'swan neck' outlet pipework ensure the meter is full at all times, even at very low flow rates

  • You can buy the meter best suited for your requirements, the options are:

  • The basic meter which allows you to use the display for the information required

  • The meter can be fitted with a pulse unit which is terminated to suit your own data logger

  • The meter can be fitted with a pulse unit to work with our TinyLog data logger which measures flow and if required, pressure data

  • You therefore only pay for the meter you need

• The TinyLog data logger can be offered as a basic manual download logger or with integral GPS function to automatically record the site co-ordinates as soon as water is detected in the sensor. You can then view the site location via Google Maps in the logger software when downloaded.

• Fitted with 2½" male instantaneous connector on the inlet pipework and 2½" female instantaneous connector on outlet pipe work ensures quick and easy conection to a hydrant via a standpipe or 'lay-flat' hoses.

• Fitted with a quick-fit pressure connector as standard. This can be used to log pressure data, to fit a pressure gauge or to fit a pressure relief valve (to safely remove the meter when used under mains pressure)

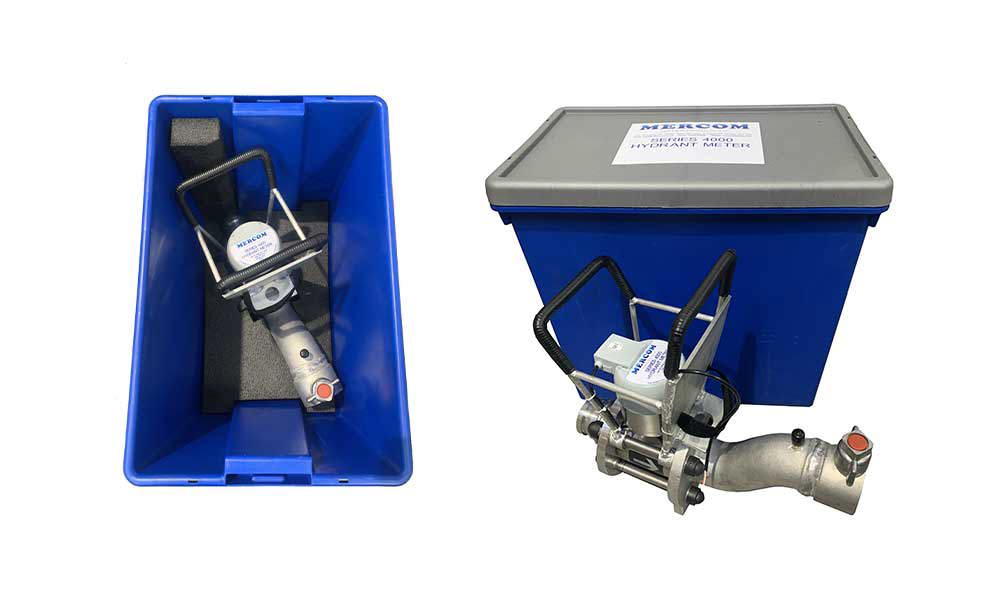

• Every meter is supplied in a rugged plastic enclosure to give added protection during transit or when the meter is not being used
